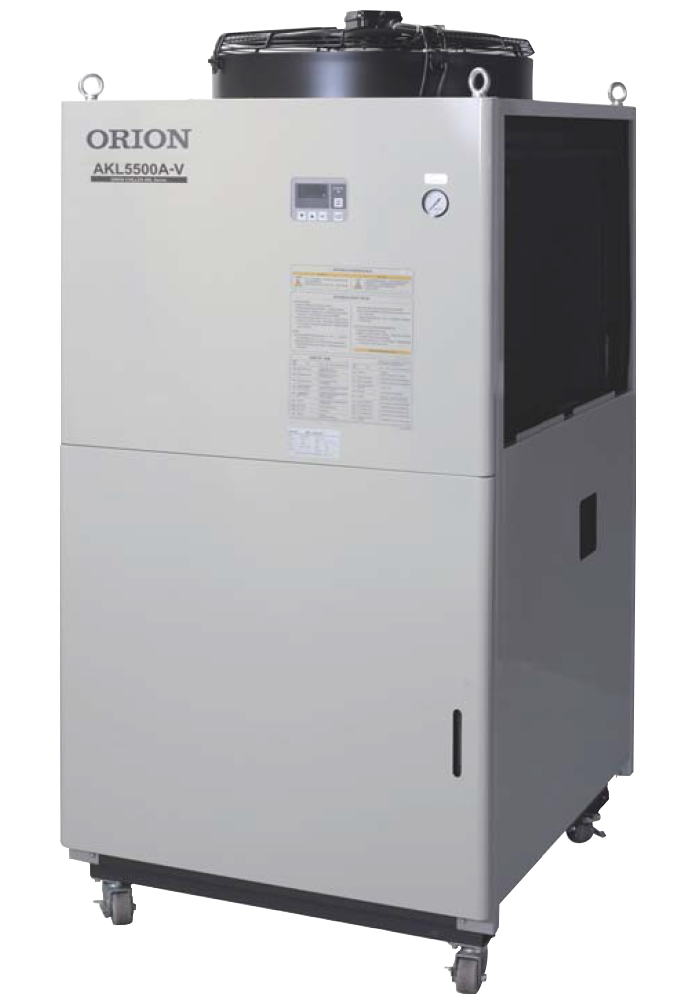

Thailand-made Chiller AKL (Air cooled)

Features

Locally made Japanese designed chiller delivered to you in a short time, in a reasonable price

Cooling Capacity (50 Hz)	:	12.0～25.0kW
Operating Ambient Temp. Range	:	5～43℃（AKL3750A-V） 5～38℃（AKL5500A-V/ AKL7500A-V）
Operating Liquid Temp. Range	:	10～30℃
Control Precision	:	±1.0℃

※1: Operating Conditions: Chilled water temp.: 20 °C, Ambient temp.: 32 °C. Cooling capacity is at least -5 % of listed figures.

※2: Source voltage phase unbalance should be less than ±3 %.

※3: The figure noted is when operating at the highest capacity in the normal operating range.

※4: Continuous current load fluctuation within ±10 %, and with stable ambient temp. and power supply, etc. Does not include starting times or when the cooling load is too small, in which case the compressor may cycle on and off.

Model				AKL3750A-V	AKL5500A-V	AKL7500A-V
Performance	Compressor output (50Hz)		HP	4.0	8.7	12.3

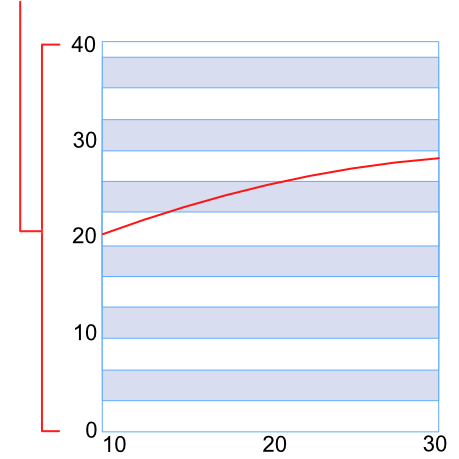

	Cooling capacity (50Hz)^*1		kW	12.0	20.0	25.0
			TR	3.4	5.7	7.1
			BTU/h	40,900	68,200	85,300
	Ambient Temp. Range		℃	5～43	5～38
	Operating temperature range (Liquid temperature)		℃	10～30
	Control accuracy^*4			±1.0℃ and lower
	Operating Water Pressure		Mpa	0.10～0.50	0.28～0.50	0.10～0.50
	Operating flow rate		L/min	20～70	68～120	70～150
Power specification	Power source^*2		V(Hz)	Three-phase 380±10% (50)
	Power consumption^*1		kW	5.4	9.0	11.8
	Electric current^*1		A	9.7	15.6	22.0
	Power capacity^*3		kVA	8.1	12.4	18.0
Operation control method				Hot Gas Bypass Control
Equipment details	Compressor			Fully sealed scroll type
	Condenser			Fin and tube forced air cooling
	Heat exchanger	Construction		Plate type heat exchanger
		Material		SUS316 (Brazing Cu)

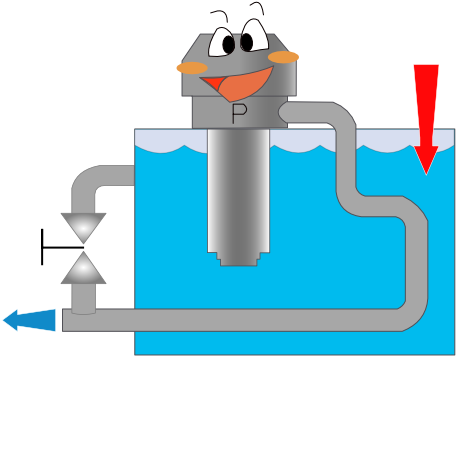

	Discharge pump	Construction		Multistage centrifugal immersion type
		Output	kW	1.1	1.46	1.46
	Water tank capacity		L	Approx. 95	Approx. 115	Approx. 140
	Refrigerant			R-407C	R-410A
Inlet and outlet port size				Rc1		Rc1.¼
Outside Dimensions (H x D x W)			mm	1685 x 905 x 805	1825 x 990 x 855	1670 x 800 x 1340
Product mass			kg	235	285	345
