REFRIGERANT AIR DRYER
High-quality air dryers remove moisture from compressed air systems for clean and safe production
Factory produced in Thailand, export quality products
IRON Air Dryer
Toughness for
hot condition easy
Easy operation
Pressure dew point
3°C at best effort
Low pressure loss
Special Features
4 Models
Air dryer or air dryer (Air Dryer)
An air dryer is an essential device used in conjunction with
an air compressor in a factory’s compressed air system. Its purpose is to remove water and moisture from compressed air, resulting in clean and dry air before it’s used in production processes, especially in pneumatic systems such as air wrenches, air bearings, air cylinders, and air motors.
The air exiting the compressor is 100% humid.
When the temperature drops, the moisture condenses into droplets.
This can lead to rust or damage to machinery and products.
Therefore, air dryers are designed to dry, dehumidify,
and remove water from compressed air systems, ensuring optimal machine operation and safe production processes.

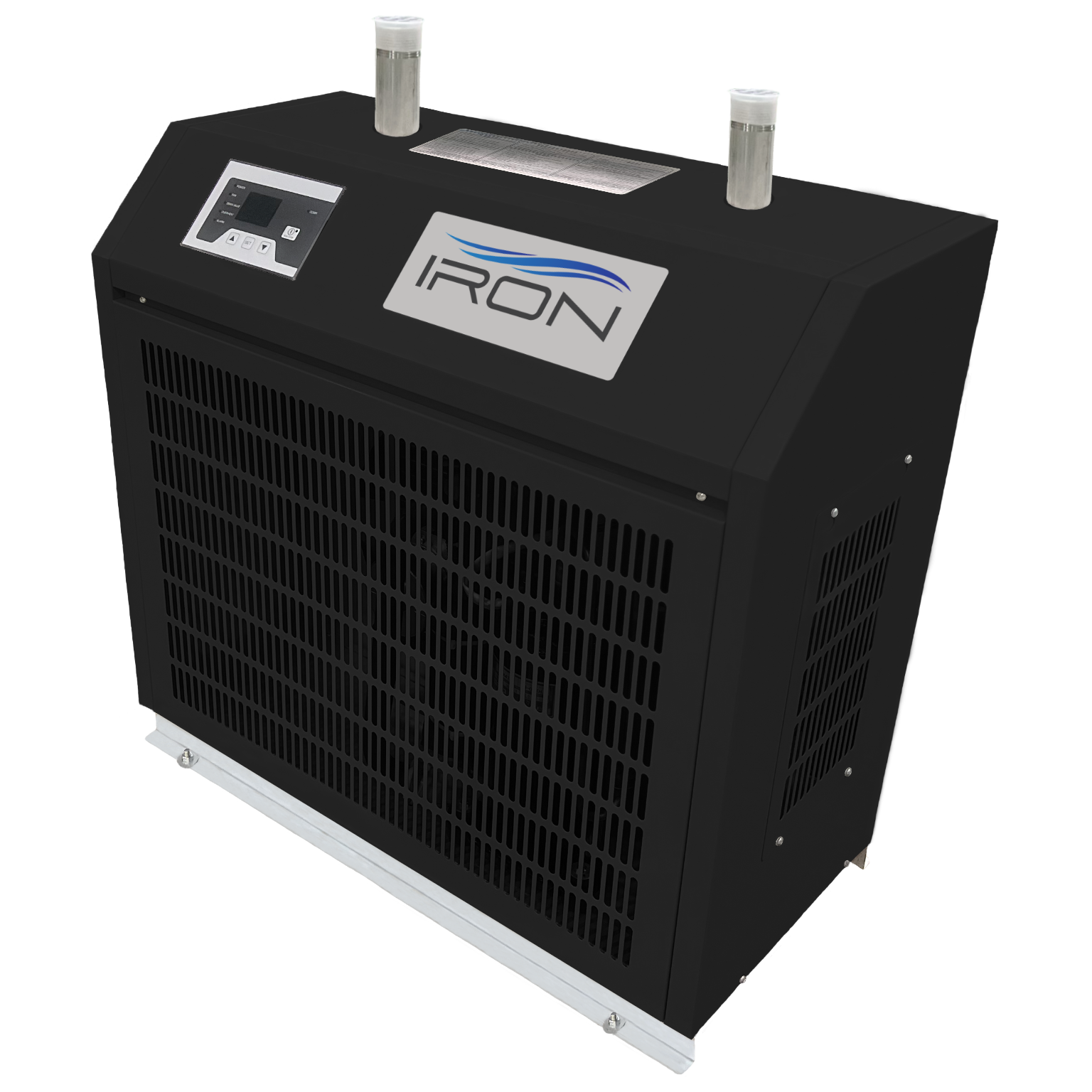

IRON Air Dryer (Refrigerated Air Dryer)
IRON Air Dryers are designed to support applications in factories of all sizes, from small to large. With their robust construction and reliable operation, they can function continuously for 24 hours, even in high-temperature environments.
Key Features of IRON Air Dryers:
- Easy and uncomplicated installation and operation.
- 24-hour continuous operation for uninterrupted production.
- Durable in high-temperature environments.
- Efficiently removes water and moisture from compressed air systems.
- Provides clean and dry air, safe for machinery and products.
Benefits for Factories:
- Reduces the risk of rust and machinery damage.
- Extends the lifespan of compressed air systems and pneumatic equipment.
- Improves production quality with clean and dry air.
- Reduces long-term maintenance costs.

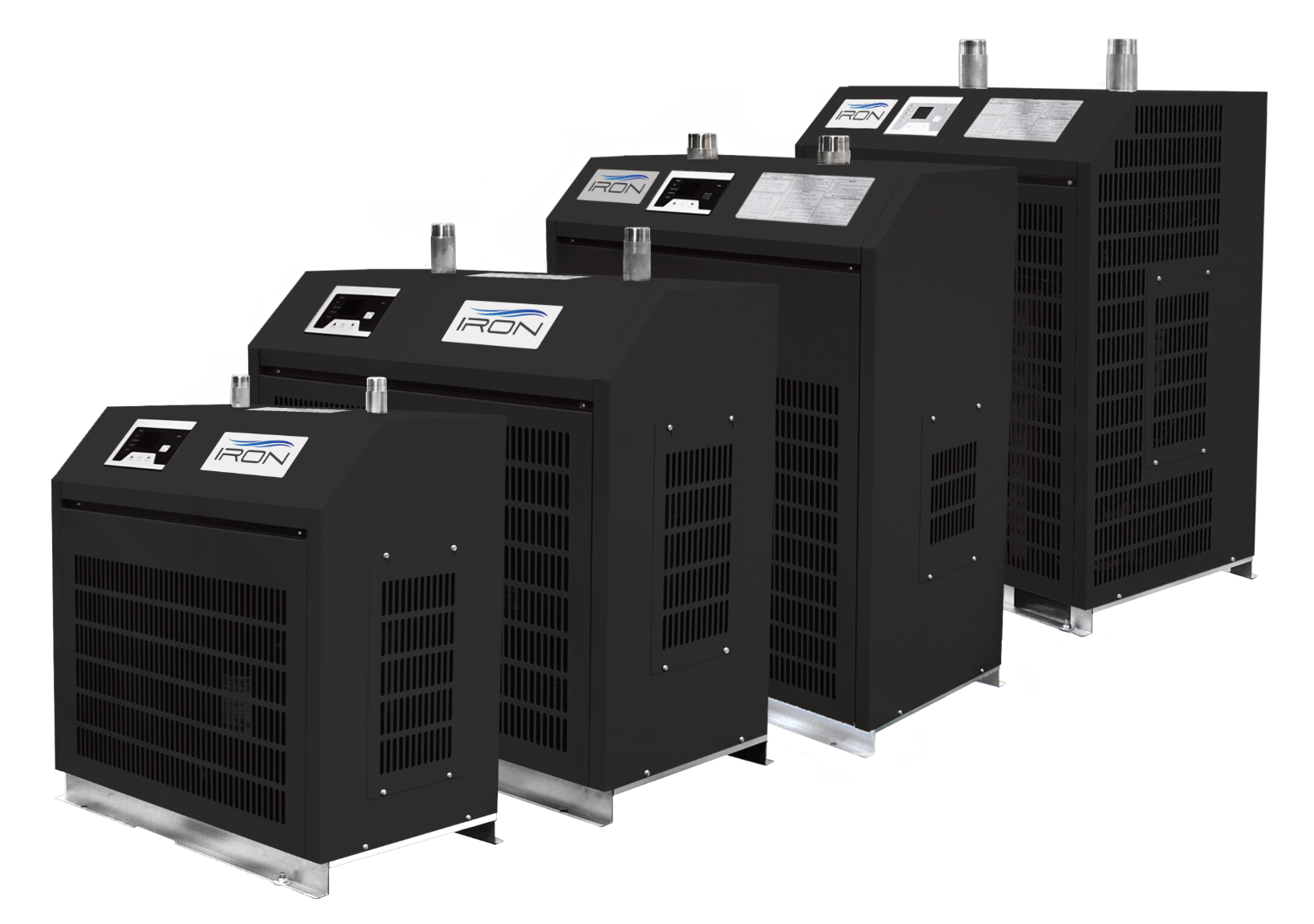

IRON air dryers are available in 4 models to suit various factory applications.
- UTA30B (30 HP)
- UTA50B (50 HP)
- UTA75B (75 HP)
- UTA100B (100 HP)
IRON Air Dryer can achieve a dew point as low as 3°C and uses R-410A refrigerant, which is human-friendly, environmentally friendly, and reduces greenhouse gas emissions.
IRON Air Dryer 4 models with special features:
- Durable in hot climates
- Easy operation with a large display
- Dew point of 3°C (optimal temperature)
- Low pressure loss for optimal air utilization
Ambient Temp. Max 50°C / Inlet Air Temp. Max 80°C
Equip stainless shell
and nickel – plated pipe

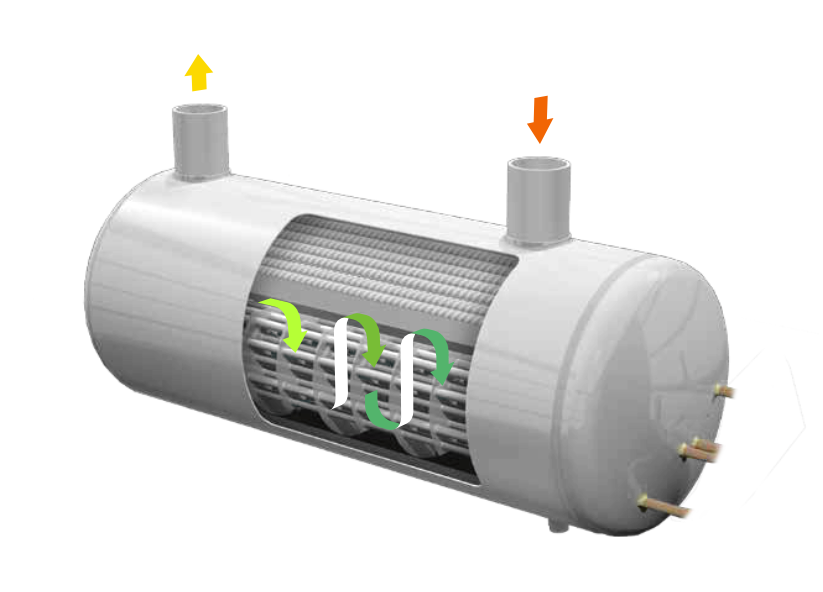

- Shell and tube heat exchanger
Heat exchangers are devices for heat transfer. They consist of stacked tubes. The refrigerant moves in the space between the tubes to exchange heat without direct contact. The refrigerant flows in either counter-flow or unidirectional.
The IRON Air Dryer tube heat exchanger is specially designed with high-quality stainless steel and welded to international export standards. The welds have been thoroughly tested for quality, minimizing air loss in the system. The special feature is the nickel-plated copper inner tubes to prevent rust and corrosion and prevent refrigerant leakage.
Evaporating temp. indicator

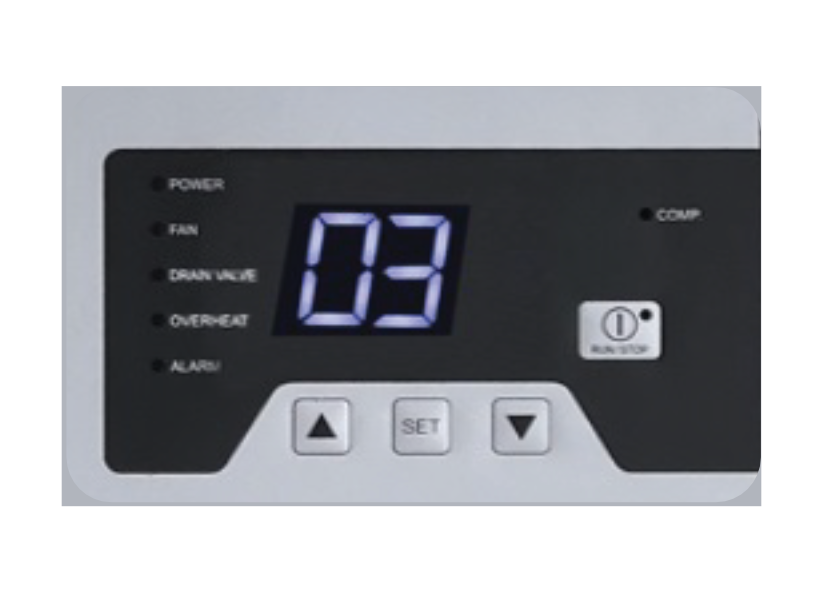

- Monitor Controller
IRON Air Dryer has a large, easy-to-use monitor with a full alarm system. It displays clear digital numbers and accurately displays dew point values. There is a light button to indicate the working status. You can set it up quickly by pressing the up arrow to increase the value of the number and the down arrow to decrease the value. It also has a special function of a light button to warn when there is a problem with the air dryer.
Air Flow Rate : 4.9 – 13.8 m³/min
Air Compressor Size : 22 – 75 kW
Manufacture of refrigerant-based air dryers
(Made in Thailand) at affordable prices
High quality standards,
specially designed system for use in Asia.

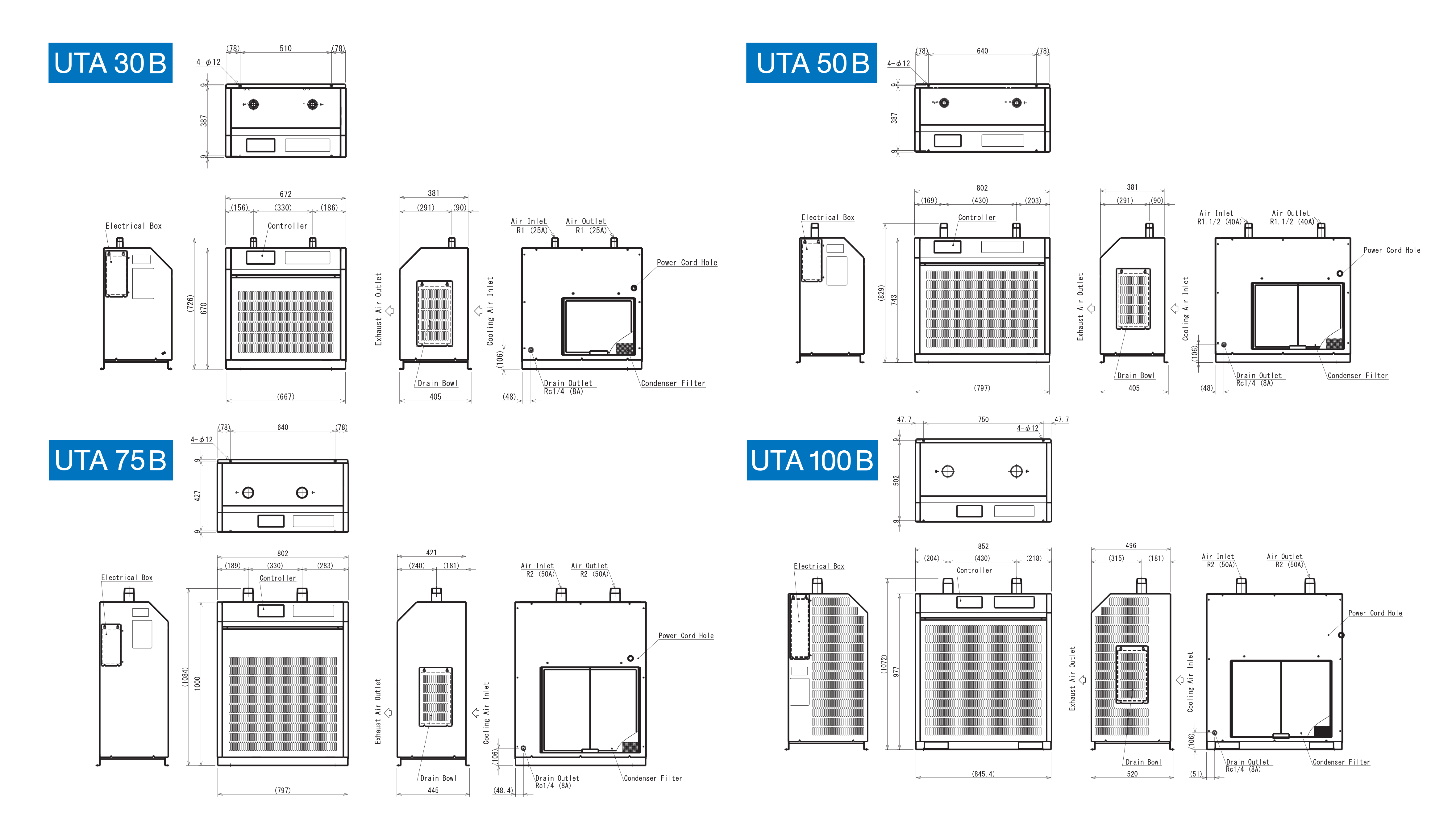

Specification
4 Model
Remarks:
- Process air conditions is based on ISO8573 (Inlet: 35°C / Ambient: 25°C).
- Best effort value.
- This air dryer is designed for indoor use.
- Technical data is subject to change without notice.
